🚰 B2B OEM/ODM EXPORT • 100% PRESSURE TESTED

Wholesale Pull-Out Kitchen Faucets Manufacturer & OEM Factory

High-arc dual-spray kitchen sink mixers engineered with 360° swivel spouts, nylon braided quiet hoses, and 500,000-cycle ceramic cartridges.

View Engineering Specs Chat with Sales Engineer
🧪

CW617N Low-Lead Brass

Cu 59-62% strictly verified via in-house OES spectrometer, conforming to EN 817 and NSF/ANSI 61.

⚙️

Sedal Ceramic Cartridge

Spanish Sedal 35mm high-flow ceramic disc core rated for 500,000 drip-free cycles under commercial pressure.

🛡️

CASS 48H Grade 10 Plating

Copper-accelerated salt spray tested for 48 hours without micro-blistering, suitable for coastal marine climates.

🔬

100% Dual Pressure QA

0.6 MPa underwater pneumatic air test + 1.6 MPa hydrostatic water test before packing ensures zero leak rate.

B2B Engineering Datasheet

Technical Specification Matrix

Direct factory manufacturing standards and component specifications for wholesale distributors, private label importers, and plumbing project contractors.

Specification Parameter Factory Standard & Engineering Value
Main Body Material CW617N / H59 Lead-Free Brass or SUS 304 Stainless Steel
Cartridge Type Sedal / Wanhai 35mm Ceramic Disc (500,000 drip-free cycles)
Aerator Type Swiss Neoperl Honeycomb Aerator with Anti-Limescale Rub-Clean Nozzles
Spout Rotation 360° Smooth Swivel Range with Teflon Bearing Bushing
Pull-Out Hose 1.5m / 1.8m High-Density Braided Nylon Hose with 360° Swivel Ball Joint
Water Modes Dual Stream & Wide Spray / Triple Blade Spray (Push-Button Toggle)
Hydrostatic Test 1.6 MPa (16 Bar) 100% Water Leakage Tested on Production Line
Pneumatic Test 0.6 MPa (6 Bar) High-Pressure Air Leakage Test
Surface Salt Spray CASS 48 Hours Grade 10 / NSS 96 Hours (ISO 9227 Standards)
Available Finishes Brushed Nickel, Matte Black, Chrome, PVD Gun Grey, Brushed Gold, Rose Gold
Inlet Pipe Standard G 1/2", G 3/8", or 9/16"-24 UNEF Flexible Braided Hoses (60cm, cUPC/DVGW)
Export Packaging Thick EPE Protective Foam + White/Color Gift Box + 5-Ply Master Carton (10 pcs/ctn)

MOQ Tiers & OEM Customization Lead Times

Flexible batch manufacturing from rapid sample approval to full container load dispatch.

Sample Evaluation
1 - 5 Pcs
3 - 7 Days
Factory sample testing with courier dispatch
Trial Production
100 Pcs / Model
20 - 25 Days
Standard neutral packaging, laser logo available
Full OEM Customization
300 - 500 Pcs
25 - 35 Days
Custom color box, branded manual, customized finish & flow rate
Full Container Load (FCL)
2,000+ Pcs
30 - 35 Days
Maximized 20GP / 40HQ container loading with tiered volume discounts
Product Catalog

Featured Pull-Out Kitchen Faucets SKUs

View Complete Catalog (37+ SKUs)
BM-FC-001 Brushed Stainless Brushed Stainless Pull-Out Kitchen Faucet (7-Shape Dual Spray)

Brushed Stainless Pull-Out Kitchen Faucet (7-Shape Dual Spray)

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

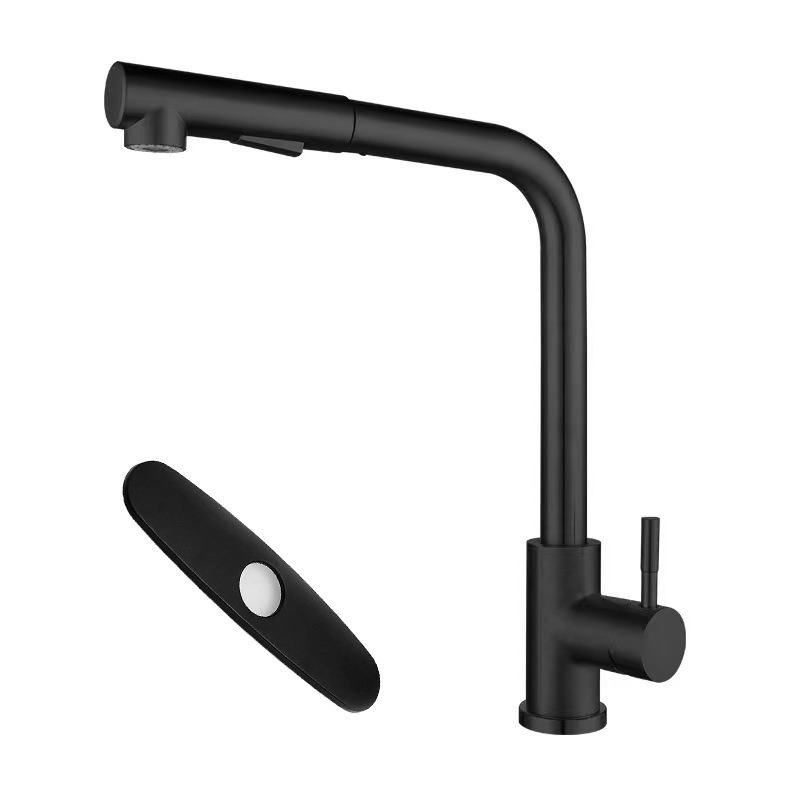

BM-FC-002 Matte Black Matte Black 7-Shape Pull-Out Faucet (Dual Spray)

Matte Black 7-Shape Pull-Out Faucet (Dual Spray)

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

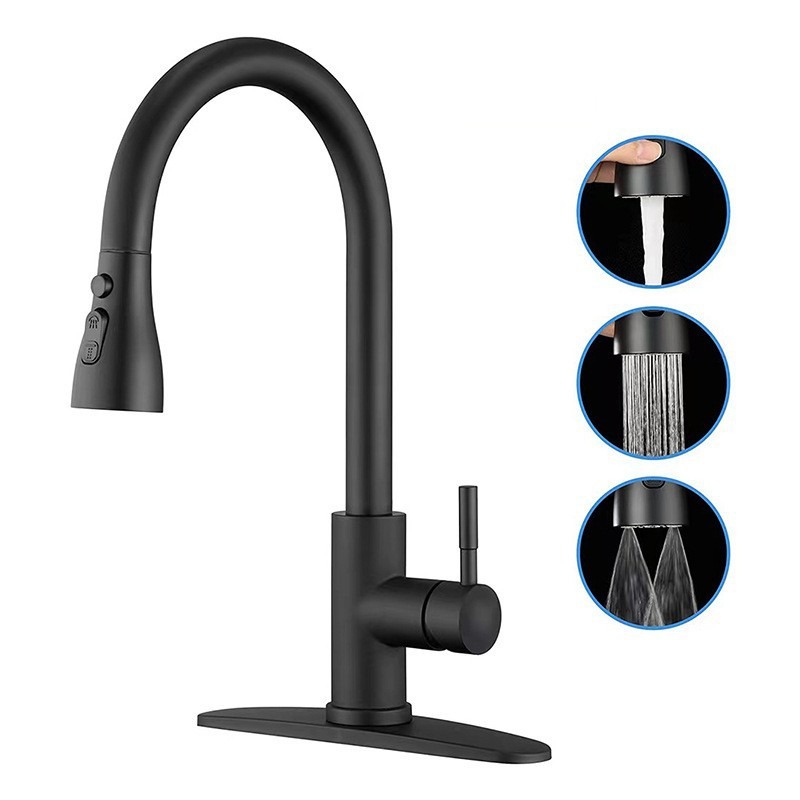

BM-FC-004 Matte Black Matte Black Dual Blade Power Sweep Pull-Out Faucet (3 Spray Modes)

Matte Black Dual Blade Power Sweep Pull-Out Faucet (3 Spray Modes)

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

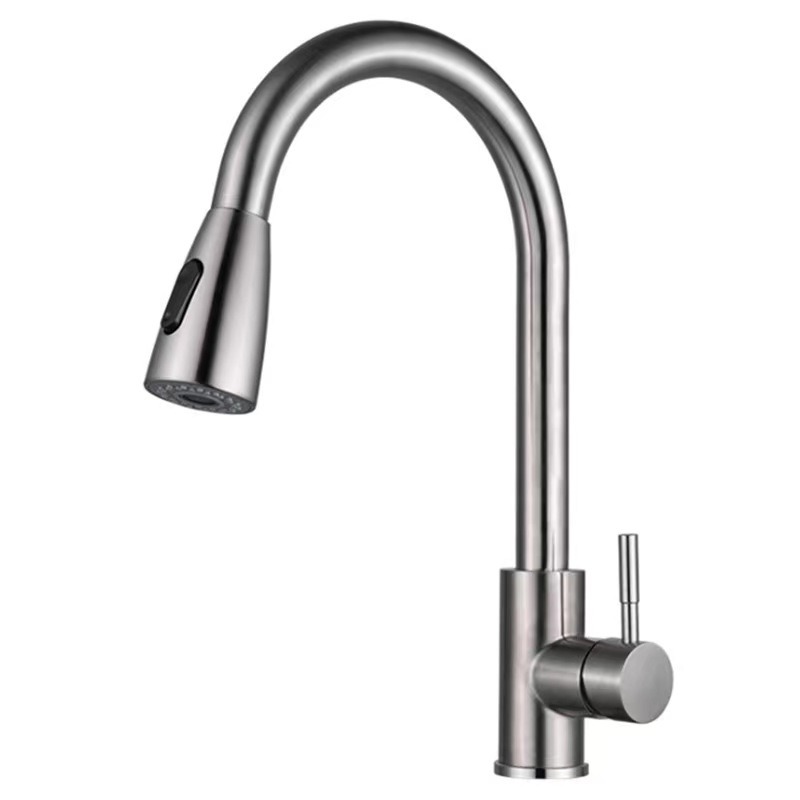

BM-FC-005 Brushed Stainless Brushed Steel Dual-Function Pull-Out Kitchen Faucet

Brushed Steel Dual-Function Pull-Out Kitchen Faucet

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

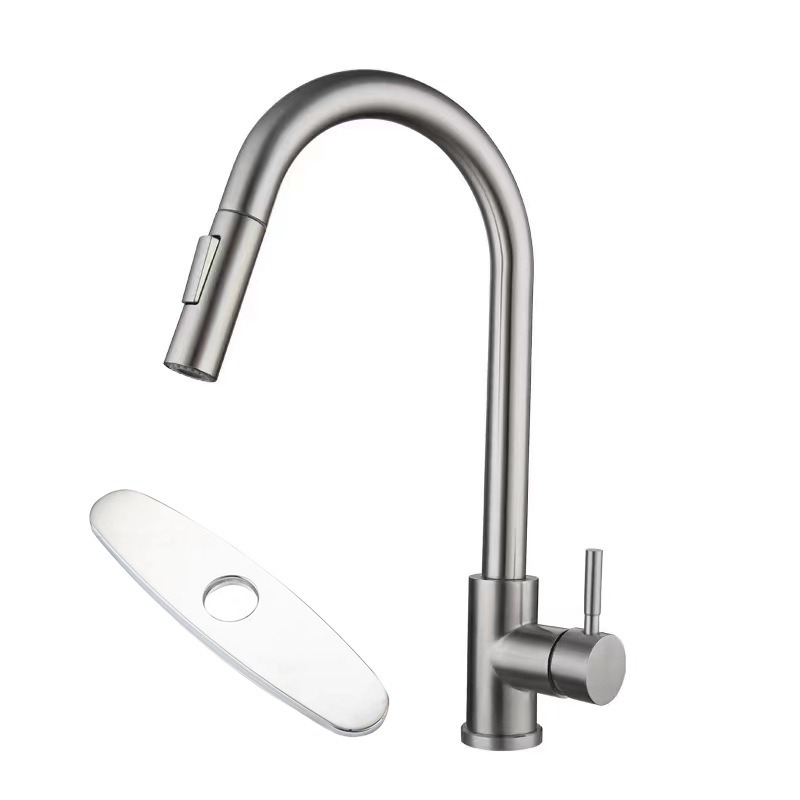

BM-FC-006 Brushed Stainless Slim Pen-Style Brushed Pull-Out Kitchen Faucet

Slim Pen-Style Brushed Pull-Out Kitchen Faucet

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

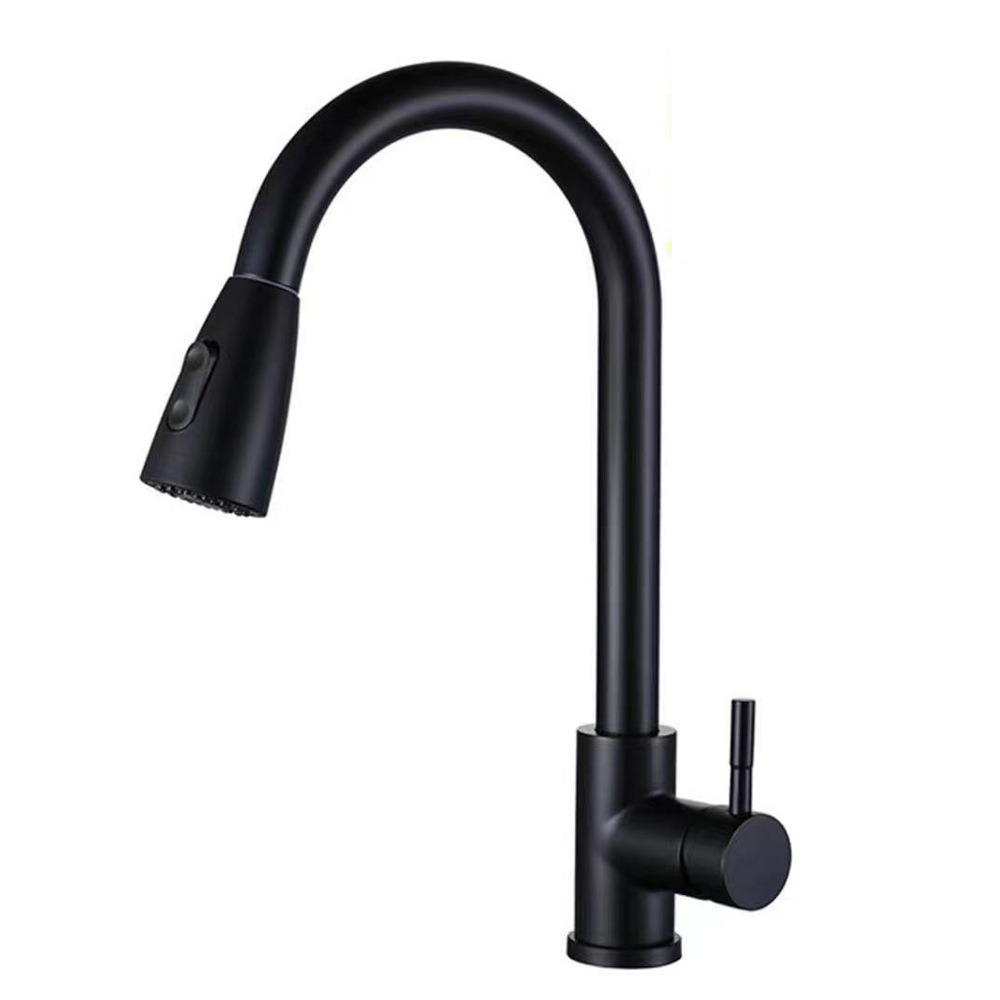

BM-FC-007 Matte Black Matte Black Dual Stream Pull-Out Faucet

Matte Black Dual Stream Pull-Out Faucet

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)

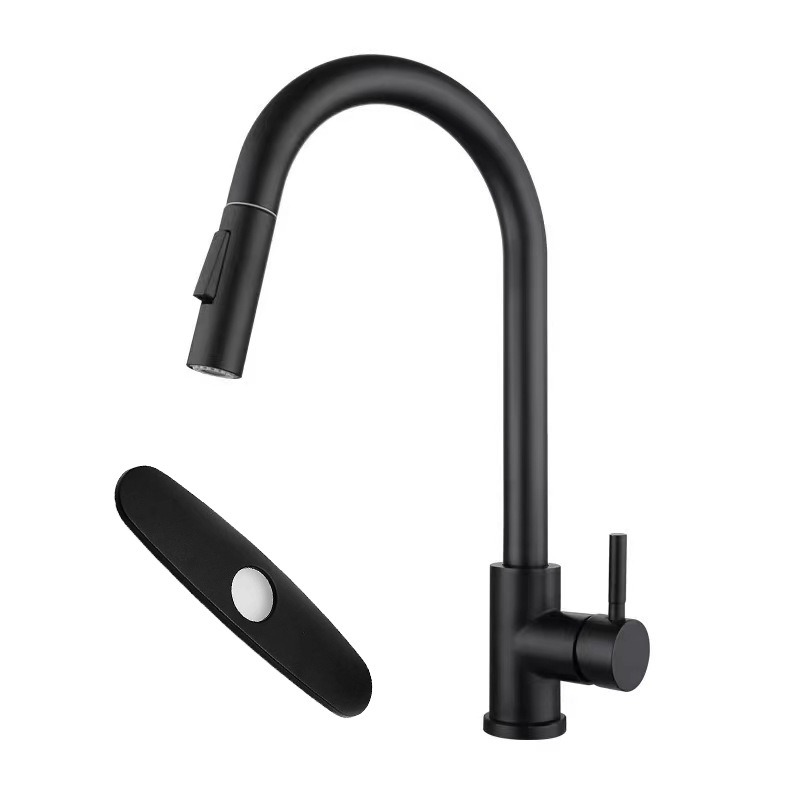

BM-FC-008 Matte Black Slim Pen-Style Matte Black Pull-Out Faucet

Slim Pen-Style Matte Black Pull-Out Faucet

  • Cartridge: Spanish Sedal 35mm Ceramic Disc (500,000 Cycles)
  • Material: 304 Stainless Steel / Lead-Free Brass
  • Testing: 100% 1.6 MPa Water Tested
  • MOQ: 100 Pcs (Laser Logo Supported)
Engineering Excellence

Why Global Importers Partner with BM Bathware

Located in Luncang Town, Nan'an City—the epicentre of China's plumbing and sanitary ware industry—BM Bathware controls every critical stage of production. From raw ingot spectrographic verification to automated 5-axis CNC machining, gravity die casting, and robotic high-precision buffing, our integrated campus prevents sub-tier quality failures.

  • Precision Wall Thickness: Heavy gravity cast brass bodies maintain a uniform >= 2.5mm wall to resist water hammer surges up to 3.5 MPa.
  • Food-Grade Certified Waterways: Odorless, non-toxic PEX-a inner tubes prevent any leaching of heavy metals or volatile organic compounds into drinking water.
  • Vacuum Magnetron PVD Coating: Superior scratch resistance (HV > 2000) compared to wet electroplating, with flawless color consistency across large batch orders.
Factory Campus Tour Audit & Test Reports

Fast B2B Engineering RFQ

B2B Buyer FAQ

Frequently Asked Questions

Common technical and procurement inquiries regarding Pull-Out Kitchen Faucets.

We cast our faucet bodies using premium CW617N / H59 brass with copper content between 59% and 62%, strictly conforming to European EN 817 and North American NSF/ANSI 61 standards. For stainless steel lines, we use certified SUS 304 food-grade alloys to guarantee zero heavy metal contamination.

Our pull-out hoses feature an inner tube made of cross-linked food-grade PEX or EPDM, sheathed in an ultra-dense, low-friction nylon or 304 stainless steel braid. Each hose undergoes a 100,000-cycle mechanical stroke test and is equipped with a counterweight system balanced specifically to the spout geometry for silent, smooth retraction.

Yes. We offer high-precision fiber laser etching for brand logos on faucet bodies or handles at an MOQ of only 100 pcs. For orders of 300+ pcs per model, we provide 100% bespoke 5-ply corrugated gift boxes with high-density EPE foam inserts, customized multi-language user manuals, and barcode labels.

We offer a 5-year commercial warranty covering the brass casting body and ceramic cartridge. In the unlikely event of any quality defect, we provide immediate 1:1 replacement parts or credits in your subsequent shipment supported by our traceable serial QA records.
