Sanitaryware & Faucet Catalog

37 Precision-Engineered Models: Kitchen Pull-Out Mixers, Water Purifier Faucets, and Plumbing Valves Available for Direct OEM/ODM Wholesale.

ADVANCED SURFACE METALLURGY

Industrial PVD & Electroplating Finishes

Our physical vapor deposition (PVD) and multi-stage electroplating processes create atomic-level bonding resistant to corrosion, fingerprint smudges, and abrasive scour pads.

PVD Gunmetal Grey

Titanium Carbide (TiC) vacuum sputtering with nano anti-fingerprint hydrophobic topcoat.

48h CASS Passed

Matte Black

Electrostatic thermoset epoxy-polyester powder cure at 200°C. Velvet touch, zero peel risk.

Grade 10 Adhesion

Brushed Stainless / Nickel

Directional linear abrasive hairline graining on solid SUS304 or brass with clear passivated sealer.

Scratch Concealing

PVD Brushed Warm Gold

Zirconium Nitride (ZrN) plasma deposition simulating champagne and brass warmth without tarnish.

Zero Tarnish / Fade

Mirror Chrome

Multi-layer galvanic electroplating: Acid Copper (15µm) + Semi-Bright Nickel (10µm) + Chrome (0.3µm).

EN 248 Compliant
INTERNAL COMPONENT SPECIFICATION

Engineered Bill of Materials (BOM)

Every part is sourced from tier-one certified vendors or precision machined in our Nan'an plant to guarantee smooth tactile operation and zero drip failures.

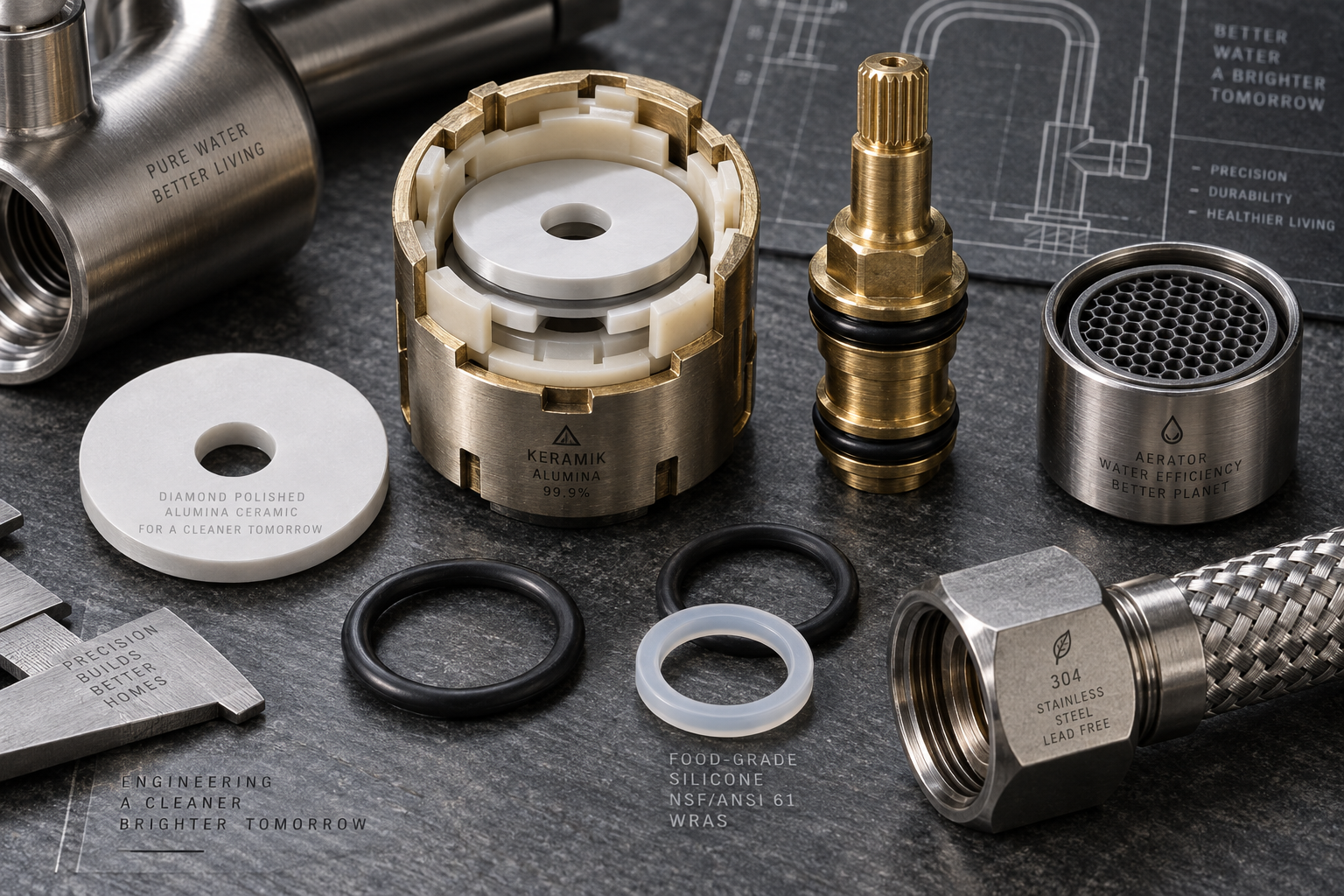

BM Bathware Ceramic Disc Cartridge and Component Breakdown
Item Component Material / Supplier Performance Metric
01 Ceramic Cartridge Sedal (Spain) / Wanhai Ø35mm 500,000 switching cycles
02 Faucet Body H59 Low-Lead Brass / SUS304 > 3.5 MPa burst safety
03 Water Aerator Neoperl Honeycomb Cascade 30% water saving, anti-lime
04 Supply Hoses Food-grade PEX + 304 Braid 95°C thermal rating, 1.6 MPa
05 Pull-Out Hose Silicone Inner + Braided Nylon Silent retraction, 60cm reach
06 Sealing O-Rings Food-Grade EPDM / Silicone Ozone & hot water aging proof
PROJECT SIZING & SPECIFICATION

Architectural Selection & Installation Parameters

Key physical dimensions and plumbing interface standards to ensure seamless compatibility with North American, European, and Asian sink configurations.

Deck Hole Diameter

Standard installation requires Ø32mm–Ø38mm (1-1/4" to 1-1/2") single-hole drill cutout. Compatible with granite, quartz, and stainless sinks.

Countertop Thickness

Extended solid brass threaded mounting shank accommodates countertop deck thicknesses up to 45mm (1.77") without extra extension kits.

Supply Inlet Threads

Customized according to export market: 9/16"-24 UNEF (US/Canada 3/8" compression), G 1/2" (Europe & UK), and G 3/8" (Germany).

Operating Water Pressure

Optimal working pressure: 0.15 MPa – 0.5 MPa (1.5 – 5.0 bar). Factory tested to withstand transient surges up to 1.6 MPa (16 bar).
